Single high heavy duty guard rail is a great way to protect warehouse equipment, racking equipment, office systems, aisle ways, and other employee work areas and machinery.
Single high warehouse guard rail typically has a 18” high post with a 10” square base plate that is anchored to the concrete with (4) ¾” concrete wedge anchors. Single high posts have threaded steel inserts on each side of the post allowing rails to be attached on all 4 sides for great versitility.
The rails are mounted to the posts by bolt and nut attachment in 2’ – 10’ increments with lift out style rails also available.
Single High Guard Rail: 18" High Post accepts one rail high. All posts have threaded inserts on all 4 sides to accept rails on all sides to provide maximum versatility. Heavy duty posts are 4.75" x 4.75" x 3/16" thick steel with 10" x 10" x 1/2" thick heavy duty base plate. Rails are 12" high x 1/8" thick double ribbed steel. Powder coated safety yellow for maximum visibility. Impact rating: 12,000 lbs. at 4 mph crash test. 2' - 10' long rails available.
All columns have a 10" square x 1/2" thick steel base plate with (4) 7/8" diameter anchor holes.
3/4" x 4.25" long wedge type anchors included with columns. Rails 12" high double ribbed x 1/8" thick formed steel with steel end plates that bolt to columns.
Rails mount to column with 1/2" x 1" long Grade 5 bolts included with rails. Each Post has threaded inserts that accepts the 1/2" x 1" long bolts for quick and easy installation. Lift out cuff brackets are a great option for removing rails if needed. The lift out cuff brackets bolt directly to the posts and then you simply drop in the rails.
Columns and rails come powder coated safety yellow and ship in 48 - 72 hours from Chicago, IL; Watsontown, PA; Lincolnton, NC; Dallas, TX; California; Auburn, WA; Louisville, KY; Rome, GA; Chicago, IL; Milwaukee, WI; Houston, TX; Charlotte, NC; Fort Worth, TX; Harrison, OH, and Angola, IN.
Other colors available: red, orange, blue, white, tan, black, and galvanized upon request.

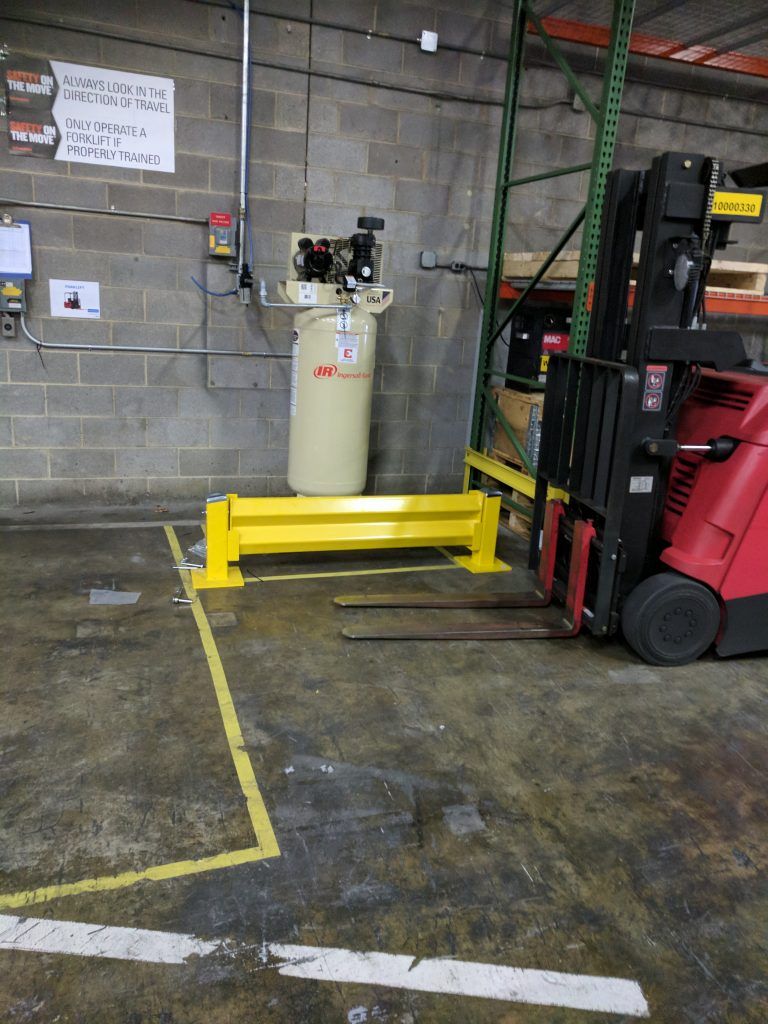

6' guardrail with lift out rails
Installed this 6' single high guardrail to protect compressor.
All components bolt together in 1' increments. Guard rail lengths listed above are actually 4" less than listed length. The lengths are center to center of columns. Rated to withstand impact of 10,000 - 12,000 lbs. load at 4 mph.
